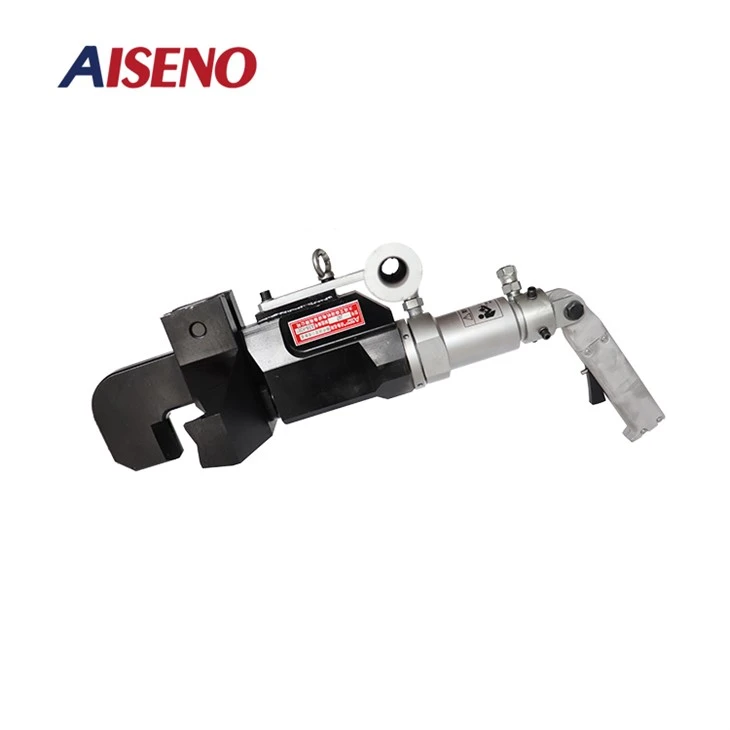

Casting Runner Cutter
2. Ua-hauv txee rau kev tsim khoom & kev saib xyuas
3. Balancer-mounted, nkees-dawb tag nrho-hnub siv
4. Txias - sib xws, ntsiag to & plua plav- ua haujlwm tsis muaj kev nyab xeeb
12–40.6Ton Balancer-Mounted Hydraulic Runner Shear
Aiseno casting runner cutter yog compact, balancer -mounted hydraulic txiav cuab yeej tsim rau kev siv nruam nrhiav. Tom qab degating thiab riser tshem tawm, nws huv si txiav cov seem khiav thiab rov qab mus rau hauv ib qho me me seem kom sai melting, txo hwj chim noj, thiab txhim kho molten hlau zoo. Hloov cov tshuab tsis nrov nrov thiab cov pa oxygen uas tsim kev puas tsuaj, nws ua rau ntsiag to, plua plav- ua haujlwm dawb thaum txo kev siv zog heev. Nrog peb tus qauv qauv thiab cov khoom siv hluav taws xob ua haujlwm, nws coj tau ruaj khov, kev ua tau zoo rau cov kab me me thiab nruab nrab.
Technical Specifications
Technical Parameters (J47 / J60 / J80 Series)
|
Qauv |
Tag nrho Length (mm) |
Qhov hnyav (kg) |
Txiav quab yuam (Ton) |
Qhov dav dav (mm) |
Dav (mm) |
Qhov siab (mm) |
Ua haujlwm siab (Mpa) |
Kev ncua |
|
J47 |
600 |
21 |
12 |
50 |
180 |
160 |
70 |
Caij nplooj ntoos hlav Balancer |
|
J60 |
800 |
52 |
24.8 |
77 |
240 |
185 |
70 |
Caij nplooj ntoos hlav Balancer |
|
J80 |
1057 |
70 |
40.6 |
136 |
300 |
256 |
70 |
Caij nplooj ntoos hlav Balancer |
Input Siab vs Output Tonnage
|
Input Siab |
10 Mpa |
15 Mpa |
20 Mpa |
25 Mpa |
|
J47 Cov |
5.1 |
6.8 |
8.5 |
10.2 |
|
J60 tso zis |
10.6 |
14.2 |
17.7 |
21.2 |
|
J80 tso zis |
17.4 |
23.2 |
29 |
34.8 |
Max Sectional Txiav Capacity
|
Qauv |
QT450 Hlau Hlau |
HT200 Grey Hlau |
|
J47 |
Tsawg dua los yog sib npaug rau ∅30mm |
Tsawg dua los yog sib npaug rau ∅45mm |
|
J60 |
Tsawg dua los yog sib npaug rau ∅50mm |
Tsawg dua los yog sib npaug rau ∅55mm |
|
J80 |
Tsawg dua los yog sib npaug rau ∅55mm |
Tsawg dua los yog sib npaug rau ∅85mm |
3-Txoj Kev Xaiv Ceev Qhia
Xaiv txoj cai casting khiav cutter rau koj cov khoom hauv 10 vib nas this:
J47: Me me nyias khiav (tsawg dua lossis sib npaug li 45mm), lub teeb -lub luag haujlwm, siab- ntim me me
J60: Cov neeg ua haujlwm nruab nrab (tsawg dua lossis sib npaug li 55mm), sib npaug rau kev ua haujlwm dav dav
J80: Cov neeg ua haujlwm hnyav hnyav (tsawg dua lossis sib npaug li 85mm), muaj zog rau tsheb & cov qauv castings
Case Study: Mexican automotive casting plant hloov phau ntawv sib tsoo nrog J80 casting runner cutter nyob rau hauv 2025. Txiav efficiency nce 125%, tus nqi zog poob 42%, thiab chaw ua hauj lwm tsis txaus siab poob rau xoom.
Core Exclusive Advantages
1. Peb tus qauv qauv npog tag nrho cov kev ua haujlwm
Tsis zoo li ib qho - cov cuab yeej loj, peb cov koob npog lub teeb rau hnyav txiav yam tsis muaj kev hloov kho, txo koj cov khoom siv tag nrho.
2. Ua tau -hauv Electronic Counter rau Kev Tswj Xyuas & Kho
Lub kaw lus tswj hwm suav nrog lub txee tsim khoom los taug qab tag nrho cov kev txiav, teem sijhawm saib xyuas, thiab zam kev poob qis.
3. Cooler -Tshaj Hydraulic System (Rov qab Flow Rule)
Yog tias nruab nrog lub tshuab cua txias, xyuas kom cov dej txias ntwsrov qabmus rau hydraulic roj kev taw qhia rau kev pom cua sov dissipation thiab ntev roj lub neej.
4. Balancer-Mounted rau Fatigue-Kev Ua Haujlwm Dawb 8hr
Tsim los rau lub caij nplooj ntoos hlav balancers, lub cutter floats weightlessly. Cov neeg ua haujlwm txav nws mus ncig ntawm lub rooj cob qhia, txawm tias lub sijhawm ua haujlwm ntev.
5. Nyob ntsiag to, Plua plav -Dawb, Kev Ua Haujlwm Zoo
Tsis muaj nplaim taws, tsis muaj ya raws, tsis muaj siab -decibel sib tsoo. Ua raws li OSHA thiab EU cov qauv kev nyab xeeb.
Daim ntawv thov Scenario
Qhov no casting runner cutter pab:
Automotive casting: tso pa, turbo, gearbox, nres Cheebtsam
General foundry: rooj vag & khiav rov ua dua, pouring system rov qab
Me & medium casting kab: sib npaug efficiency & durability
Rhiav ib puag ncig yuav tsum muaj suab nrov tsawg & tsis muaj kuab paug
Kev Ua Haujlwm & Kev Txhim Kho
Hnav kaus mom hlau, tsom iav, khau ruaj ntseg; kom meej ntawm qhov chaw txiav
Tsis txhob overload tshaj lub peev xwm los yog max seem loj
Yog tias nruab nrog lub tshuab cua txias, paub meej tias rov qab ntws kev taw qhia ua ntej siv
Txheeb xyuas cov roj hydraulic txhua hnub; siv ISO VG32 los tiv thaiv -cov roj hydraulic
Kev pabcuam lub sijhawm ua haujlwm kom paub tseeb tias kev tsim khoom raug raug
Tshawb xyuas cov hoses thiab kev sib txuas txhua lub lim tiam; hloov cov khoom hnav tam sim ntawd
Siv cov khoom qub qub kom tswj tau qhov kev tiv thaiv
Cov lus nug nquag
Q: Qhov txawv ntawm Casting Runner Cutter thiab Runner Breaker yog dab tsi?
-
Casting runner cutter siv precision shear kom huv si, tswj kev txiav zoo tagnrho rau nruab nrab - me me khiav. Runner breakers tsom rau hnyav crushing rau tuab rov qab.
Q: Kuv puas tuaj yeem siv Kuv Lub Hwj Huam Hydraulic?
-
Yog, tsuav nws txhawb 70Mpa. Peb muab kev sib txuas thiab kev txhawb nqa kev teeb tsa.
Q: Lub Tuam Txhab Pab Kuv Lub Hoobkas li cas?
-
Nws taug qab cov ntim ntau lawm, npaj kev saib xyuas, txhim kho kev ua haujlwm, thiab ua kom yooj yim rau kev tswj hwm.
Q: Puas yuav tsum tau ua kom txias txias?
-
Pom zoo rau 2-hloov lossis siab-rhiav kub. Ua raws cov kev taw qhia rov qab-khiav kom tau txais txiaj ntsig zoo tshaj plaws.
Brand & Internal Links
Aiseno yog lub chaw tsim khoom ntseeg siab ntawm hydraulic foundry trimming khoom nrog ISO9001, ntau patents, thiab thoob ntiaj teb tom qab- kev muag khoom. Peb lub tshuab hluav taws xob casting muab kev ua haujlwm zoo ib yam rau nws pib qhov chaw, qhov chaw tsim khoom, thiab siv hlau rov ua dua tshiab.
